Pre-Orders Soon!

I am still working on finalizing the circuit and making necessary changes before sending cad files to have the boards made.

Round 1 boards will be assembled by hand before shipping.

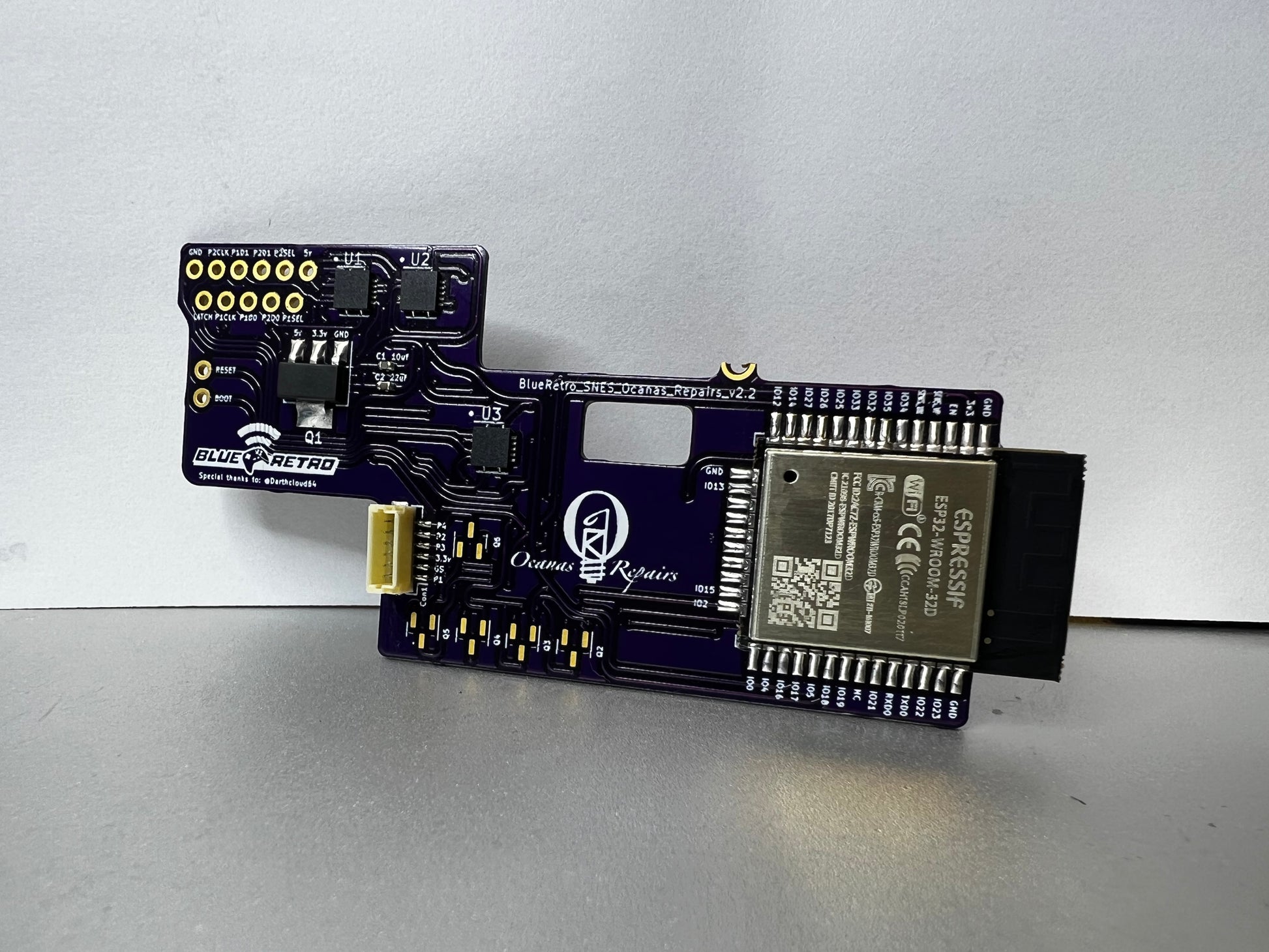

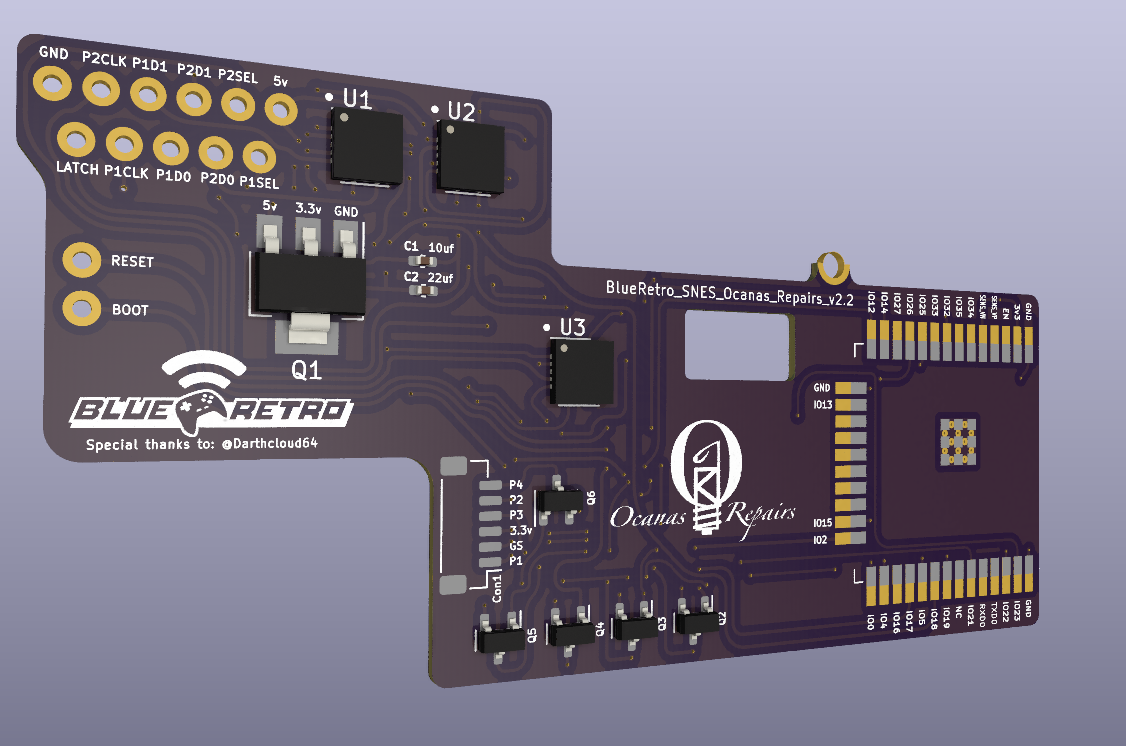

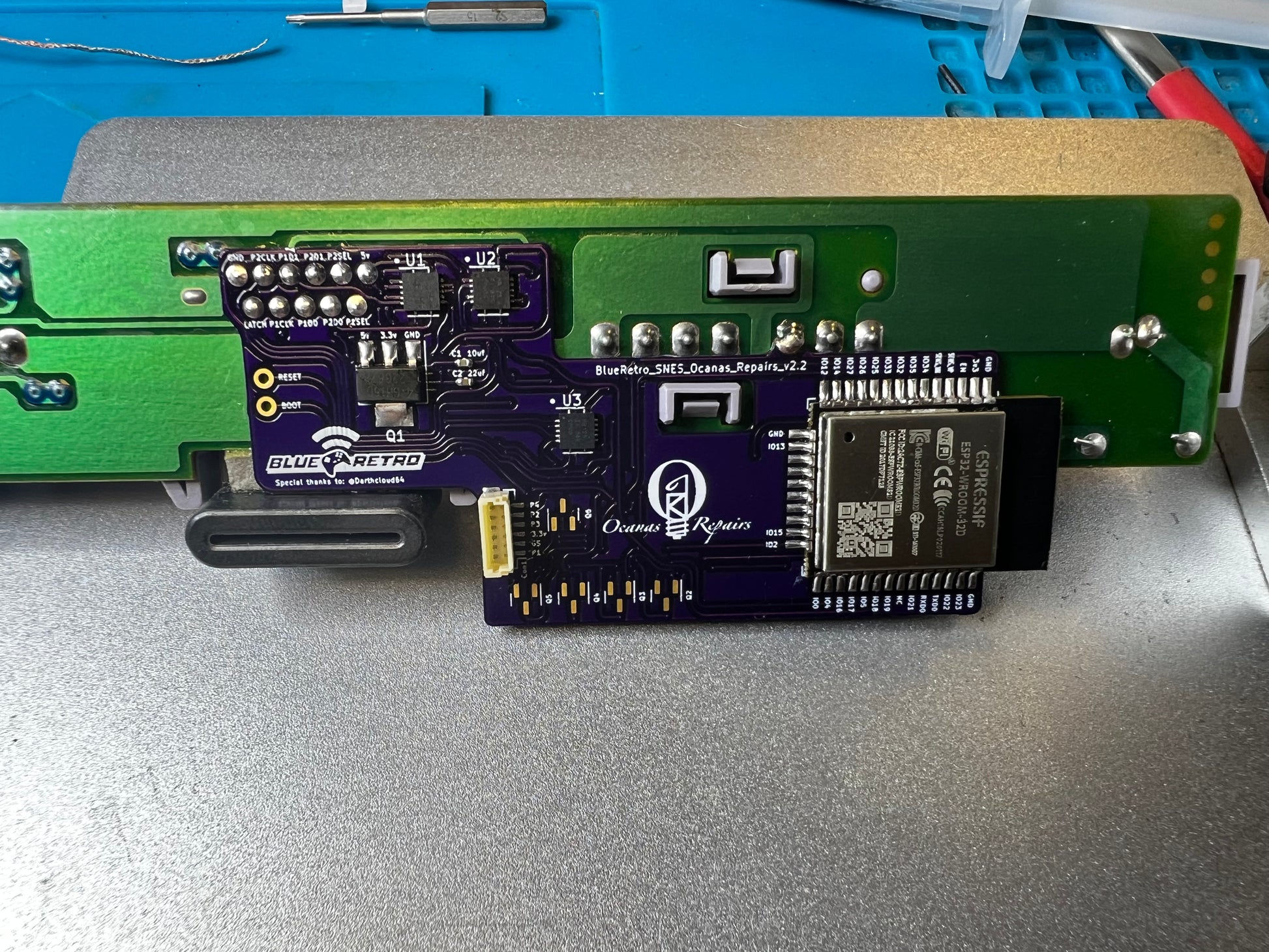

This custom designed board installs ontop of the SNES controller board allowing for new features on the console.

Blue Retro is a high speed Bluetooth controller interface that opens retro consoles up to the plethora of modern controllers with latencies that even some wired adapters can't manage. This new board allows for the use of up to 4 connected Bluetooth controllers, and can be mixed and matched with wired controllers on any of the ports for seamless operation.

Features:

• Up to 4 Bluetooth controllers can be paired at once.
• Wired controllers are still usable.
• When a wired controller is connected it the Bluetooth controllers will move to open ports automatically.

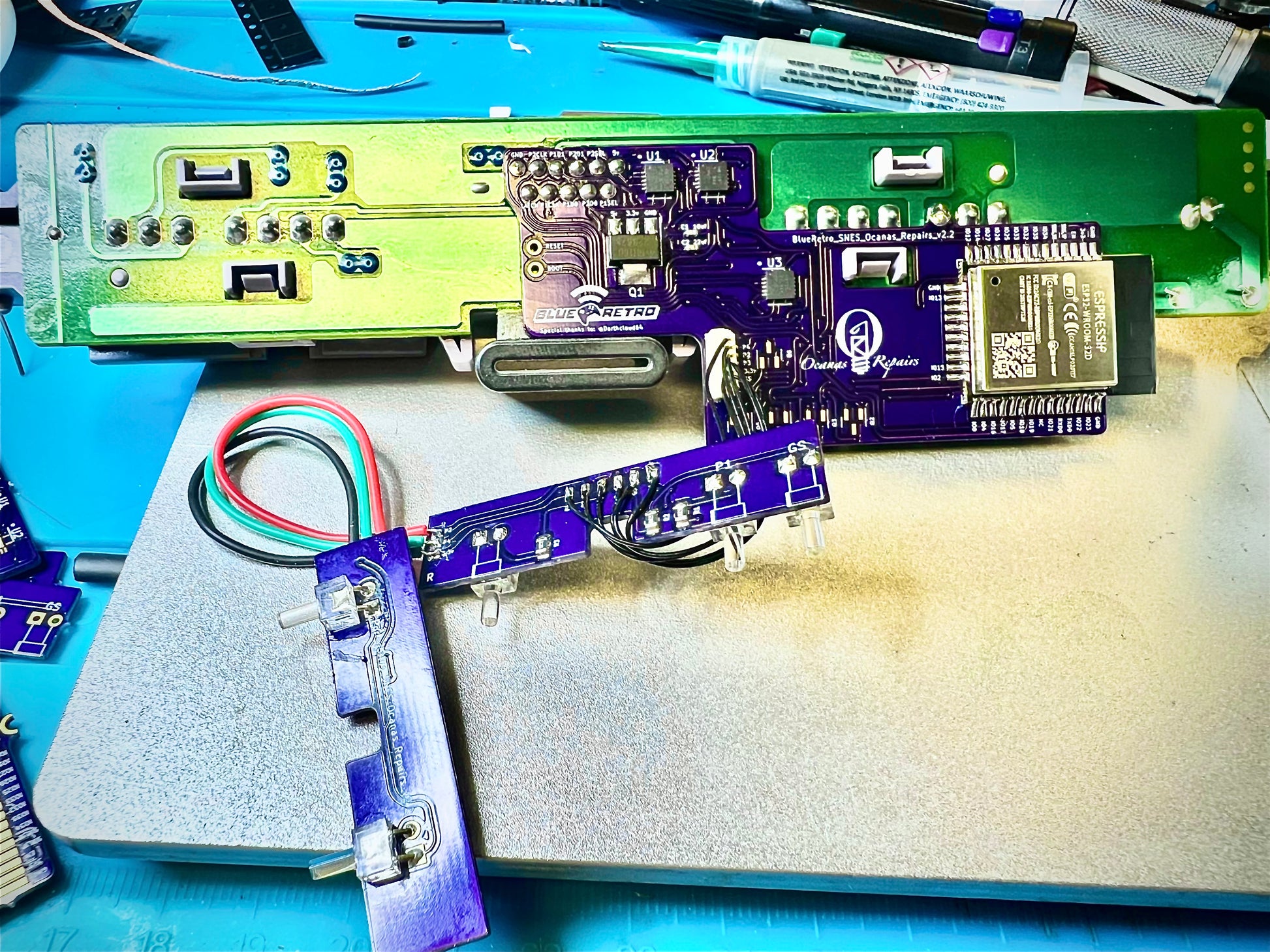

• (Optional Addon) LED port status board to indicate where a Bluetooth controller is connected
• Easy firmware update tool that only requires a Bluetooth enabled device like a phone or computer
• Configurable button mapping using the web interface on a computer or phone
• Simple installation requiring only screwdrivers and Soldering iron (Gamebit 4.5mm and Philips #2)

Compatible Controllers

This GitHub Link has detailed list of compatible controllers and how to pair each type to Blue Retro
https://github.com/darthcloud/BlueRetro/wiki/Controller-pairing-guide

• Playstation 3 (see pairing guide above)
• Playstation 4/5
• Xbox One/SeriesX/S
• Switch Controllers (Only one Switch Controller paired to the console at this time is supported this is a bug that has not been found)
• 8BitDo (xinput mode)
• Wii Controllers
• Generic HID Bluetooth controllers (Note not all controllers will universally work there is the potential you can help us support new devices see the guide above for details)
• Bluetooth Keyboards (emulate the ASCII Keyboard Controller)
